ARO High Pressure Pump

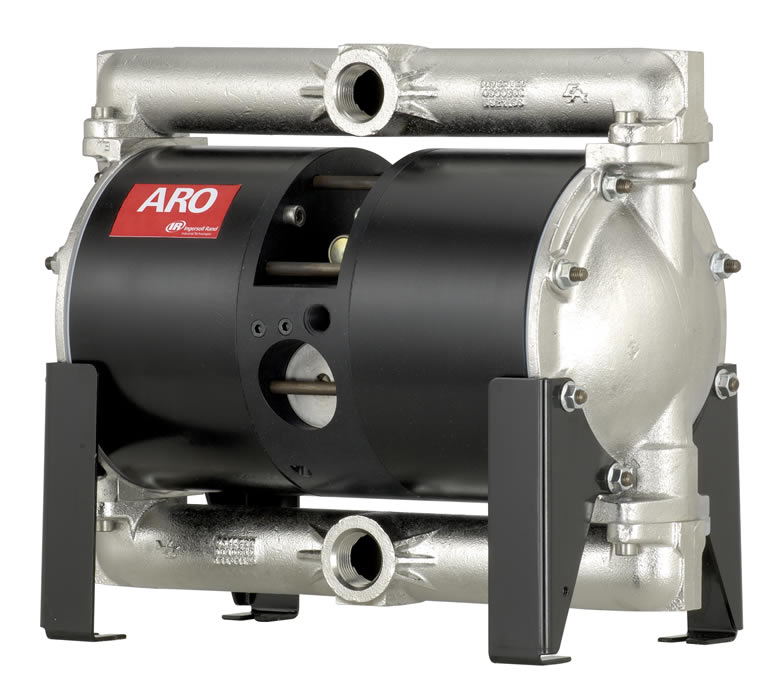

ARO HIGH PRESSURE PUMP 2:1 RATIO Features ■Utilizing Power - Can produce up to 200 psi, at about half the flow rate of a standard diaphragm pump by utilizing the effective surface areas of both diaphragms to double output pressure!! ■Structural Integrity - Bolted Construction eliminates problems associated with leaking band-clamps while also reducing maintenance costs ■Simul-Shift™ and Quick Dump™ valve technology for stall free / ice free operation ■Intelligent Design - Modular major valve for ease of repair ■Built to Last - Convoluted diaphragms for long life Pump Casing Materials ■Stainless Steel Diaphragm Materials ■Santoprene ■Hytrel ■PTFE/Santoprene

ARO HIGH PRESSURE PUMP 3:1 RATIO Features ■Can produce up to 300 psi, at about half the flow rate of a standard diaphragm pump by utilizing two power pistons that drive the fluid handling diaphragms ■Generates nearly 300 psi on standard 100 psi shop air ■Stall-Free ■Exceptional material compatibility ■Easy to maintain ■Ideal transfer of paint recirculation and high solid coatings, inks, adhesives, filled material, drilling grout, caulking, solvent reclamation and resins Pump Casing Materials ■Stainless Steel Diaphragm Materials ■PTFE (PTFE)
